GP-2341L09
Teklif İsteHAVALI KALIPÇI TAŞLAMA
- Collet (Option) 1/4″ or 6 mm
- Free Speed 22,000 RPM
- Power 373 W (0.5 HP)
- Air Pressure 6.2 bar (90 PSI)
- Air Consumption 99.2 L/min
- Exhaust Rear
- Weight 0.89 kg
- Length 245 mm
GP-2383
Teklif İsteHAVALI 90 DERECE KALIPÇI TAŞLAMA
- Collet Size 1/4″ ( 6 mm)
- Free Speed 20,000 rpm
- Power 0.3 HP
- Overall Length 155 mm
- Air Inlet 1/4″
- Air Consumption 74 l/min
- Weight 0.5 kg
GP-2396L
Teklif İsteHAVALI KALIPÇI TAŞLAMA
- Free Speed 20,000 RPM
- Collect 3, 6 mm ; 1/4″
- Power 372.8 W (0.5 HP)
- Air Consumption 141 L/Min.
- Air Pressure 6.2 bar (90 PSI)
- Air Inlet 1/4″
- Hose Size 9.5 mm (3/8″)
- Exhaust 360° Adjustable Front Side Exhaust
- Sound Pressure 83.5 dBA
- Vibration < 2.5 m/s²
- Overall Length 319 mm
- Net Weight 1.3 KG
GP-2396LL
Teklif İsteHAVALI ENDÜSTİYEL KALIPÇI TAŞLAMA
- Free Speed 20,000 RPM
- Collect 3, 6 mm ; 1/4″
- Power 372.8 W (0.5 HP)
- Air Consumption 141 L/Min.
- Air Pressure 6.2 bar (90 PSI)
- Air Inlet 1/4″
- Hose Size 9.5 mm (3/8″)
- Exhaust 360° Adjustable Front Side Exhaust
- Sound Pressure 83.5 dBA
- Vibration < 2.5 m/s²
- Overall Length 446 mm
- Net Weight 1.5 KG
GP-2507
Teklif İste¾” HAVALI SOMUN SIKMA
- Mechanism Twin Hammer
- Square Drive 3/4″
- Free Speed 5,500 rpm
- Max. Torque 2,033 Nm (1,500 ft-lb)
- Working Torque 1,627 Nm (1,200 ft-lb)
- Air Pressure 6.2 bar (90 psi)
- Air Consumption 198 l/min
- Air Inlet 3/8″
- Hose Size 3/8″
- Length 220 mm
- Net Weight 3.7 kg
- Vibration 8.6 m/s²
- Noise Level 96.5 dBA

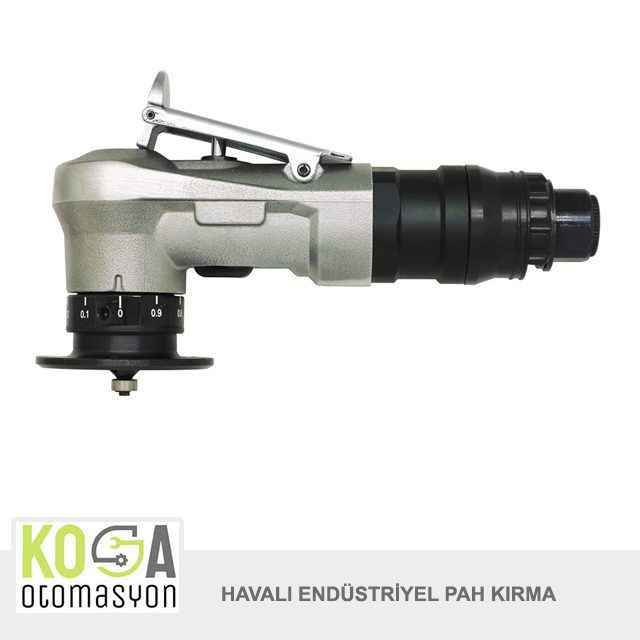

GP-2700C
Teklif İsteHAVALI MİNİ PAH KIRMA
- Free Speed: 30,000 rpm
- Capacity: Steel, Alum, Brass C0. 1 – C2 mm
- Exhaust: Rear
- Air Consumption: 65.1 l/min
- Air Pressure: 6.2 bar (90 psi)
- Air Inlet: 1/4″
- Air Hose: 3/8″
- Length x Height: 120 x 65 mm
- Net Weight: 0.42 kg
GP-2789
Teklif İste115 DERECE AÇILI KALIP TAŞLAMA
- Collect Size 6 mm or 1/4″
- Free Speed 18,000 rpm
- Motor Power 375W (0.5 HP)
- Air Consumption 105 l/min
- Air Pressure 6.2 bar (90 psi)
- Air Inlet 1/4″
- Hose Size 3/8″
- Length 178 mm
- Net Weight 0.7 kg

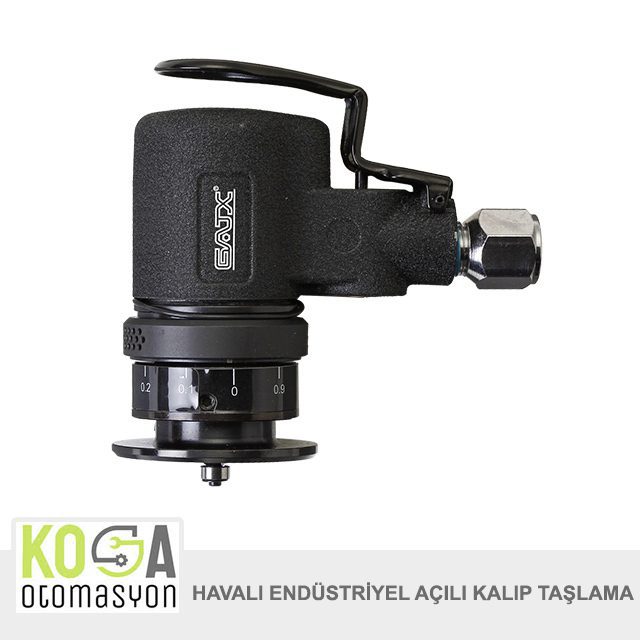

GP-2790
Teklif İsteMİNİ PAH KIRMA
- Free Speed 20,000 rpm
- Chamfer Range 0.1 – 1.0 mm
- Chamfer Degree C x45mm only
- Motor Power 0.35 hp (0.263 kw)
- Exhaust Swivel Side Exhaust
- Air Consumption 495 l/min
- Air Pressure 6.2 bar (90 psi)
- Air Inlet 1/4″
- Height 93 mm
- Net Weight 0.55 kg

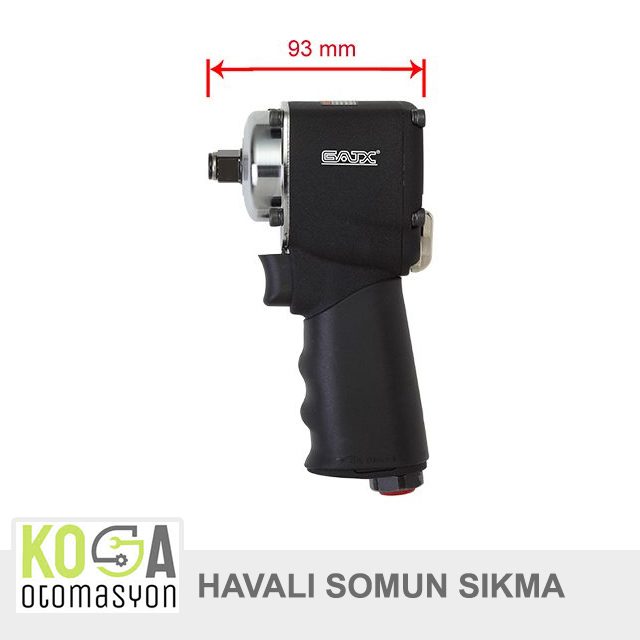

GP-3241A
Teklif İste½ ” HAVALI MİNİ SOMUN SIKMA
- Mechanism Jumbo Hammer
- Square Drive 1/2″
- Free Speed 10,500 rpm
- Working Torque 542 Nm (400 ft-lb)
- Max Torque 610 Nm (450 ft-lb)
- Air Consumption Load 105 l/min
- Overall Length 93 mm
- Air Pressure 6.2 bar (90 psi)
- Net Weight 1.35 kg
GP-3280
Teklif İste½ ” HAVALI SOMUN SIKMA
- Mechanism Twin Hammer
- Free Speed 8,000 rpm
- Max Torque 1,356 Nm ( 1,000 ft-lbs)
- Busting Torque 1,762 Nm ( 1,300 ft.lbs)
- Air Consumption 250 l/min
- Square Drive 1/2″
- Air Inlet 1/4″
- Air Pressure 6.2 bar (90 psi)
- Overall Length 195mm
- Weight 2.1 kg

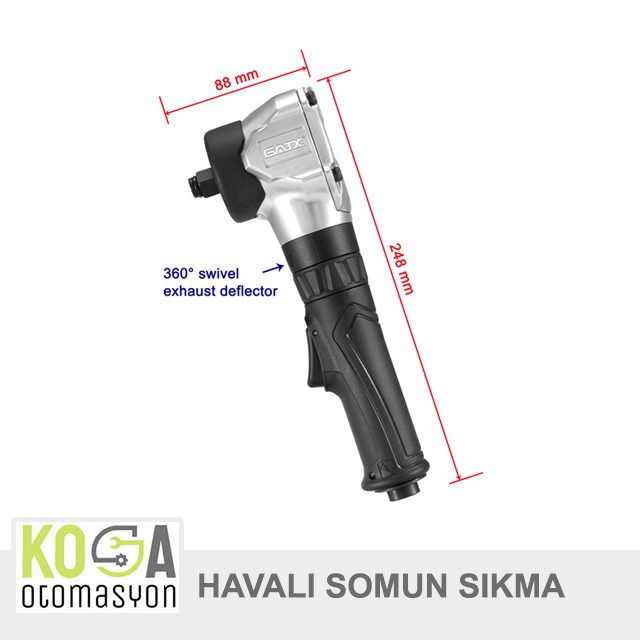

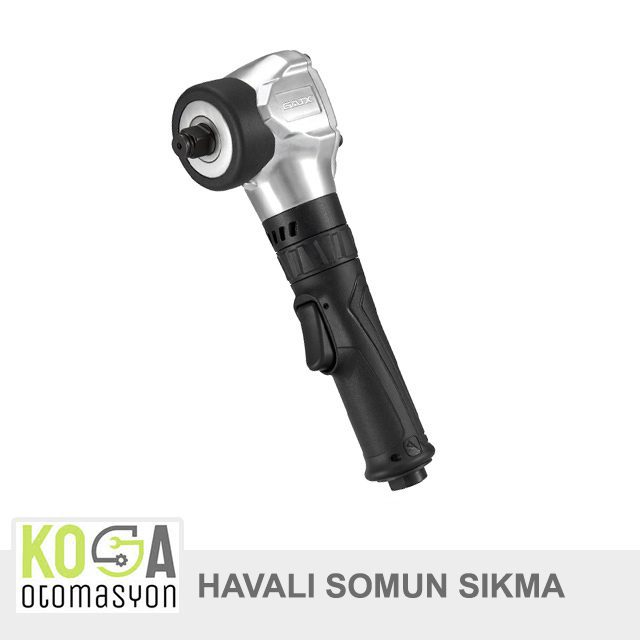

GP-3288A
Teklif İste½ ” HAVALI 90 DERECE SOMUN SIKMA
- Mechanism Jumbo Hammer
- Square Drive 1/2″
- Free Speed 6,500 rpm
- Max. Torque @ 5 sec. 407 Nm (300 ft-lb)
- Forward 3 Speeds
- Reverse Full Power
- Exhaust 360° Swivel Exhaust Deflector
- Air Inlet 1/4″
- Hose Size 3/8″
- Air Pressure 6.2 bar (90 psi)
- Avg. Air Consumption 119 l/min
- Height x Length 88 x 248 mm
- Net Weight 1.4 kg
GP-3322
Teklif İsteHAVALI SOMUN SIKMA
- Mechanism Twin Hammer
- Square Drive 1/2″
- Capacity Bolt Size 16 mm (5/8″)
- Free Speed 10,000 RPM
- Exhaust Handle
- Max. Torque (Forward) 815 Nm (600 ft-lb)
- Max. Loosening Torque 1,400 Nm (1,032 ft-lb)
- Air Inlet 1/4″
- Sound Pressure 84 dBA
- Air Pressure 6.2 bar (90 PSI)
- Air Consumption 164 L/Min.
- Length 119 mm
- Weight 1.50 KG
