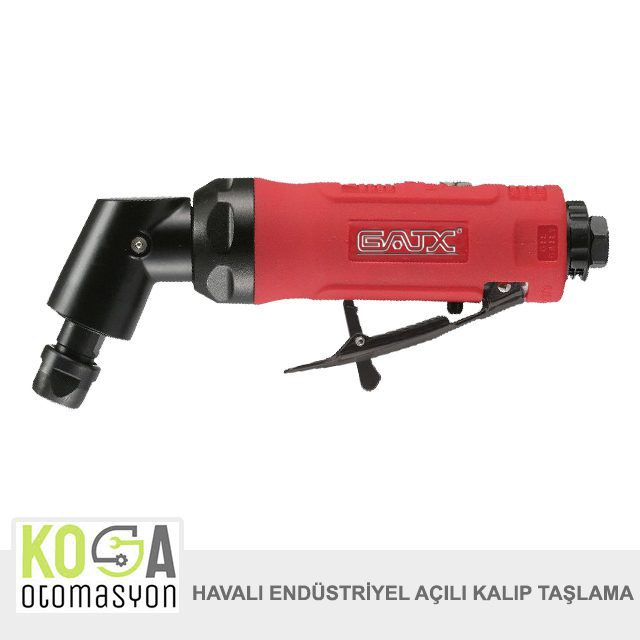

GP-0531SS
HAVALI ENDÜSTRİYEL 90 DERECE KALIPÇI TAŞLAMA
- Free Speed 15,000 rpm
- Collet (option) 1/4" or 6 mm
- Motor Power 0.35 hp (263 w)
- Max Run-Out 0.18 mm
- Avg. consumption 340 l/min
- Air Pressure 6.2 bar (90 psi)
- Exhaust Side
- Air Inlet 1/4"
- Vibration 4.4 m/s²
- Sound Pressure 88 dBA
- Dia. x Length 35 x 166 mm
- Weight 0.8 kg
GP-0591ES
HAVALI ENDÜSTİYEL KALIPÇI TAŞLAMA
- Collet (option) 1/4", 1/8", 3 or 6 mm
- Free Speed 24,000 rpm
- Motor Power 263 W (0.35 HP)
- Exhaust Side
- Air Inlet 1/4"
- Air Pressure 6.2 bar (90 psi)
- Air consumption 340 l/min
- Max Run Out 0.10 mm
- Dia. x Length 37 x 168 mm
- Weight 0.7 kg
- Vibration 2.1 m/s²
- Sound Pressure 82.5 dBA
GP-0591ESL
HAVALI KALIPÇI TAŞLAMA
- Free Speed 23,000 rpm
- Collet (option) 1/8", 1/4", 3 or 6 mm
- Avg. consumption 340 l/min
- Max Run-Out 0.10 mm
- Motor Power 0.35 hp (0.263 kw)
- Air Pressure 6.2 bar (90 psi)
- Air Inlet 1/4"
- Hose Size (I.D) 3/8" (9.5 mm)
- Housing Steel
- Exhaust Side
- Vibration 2.9 m/s²
- Sound Pressure 83 dBA
- Dia. x Length 37 x 295 mm
- Weight 1.0 kg
GP-2396L
HAVALI KALIPÇI TAŞLAMA
- Free Speed 20,000 RPM
- Collect 3, 6 mm ; 1/4"
- Power 372.8 W (0.5 HP)
- Air Consumption 141 L/Min.
- Air Pressure 6.2 bar (90 PSI)
- Air Inlet 1/4"
- Hose Size 9.5 mm (3/8")
- Exhaust 360° Adjustable Front Side Exhaust
- Sound Pressure 83.5 dBA
- Vibration < 2.5 m/s²
- Overall Length 319 mm
- Net Weight 1.3 KG

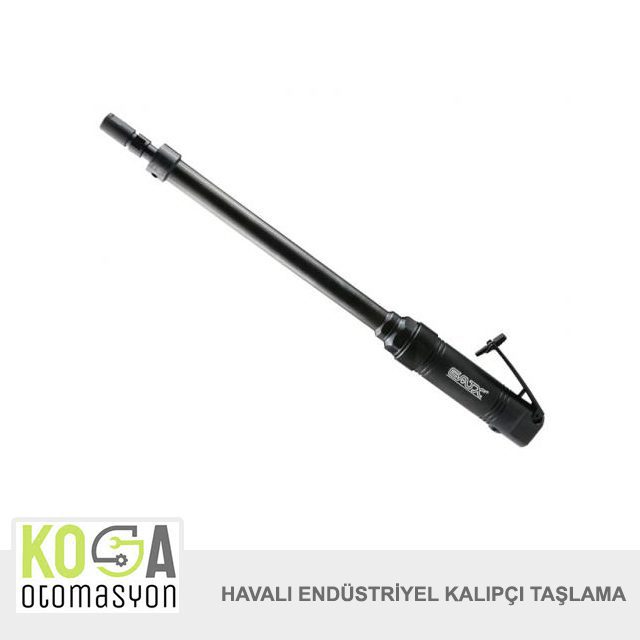

GP-2396LL
HAVALI ENDÜSTİYEL KALIPÇI TAŞLAMA
- Free Speed 20,000 RPM
- Collect 3, 6 mm ; 1/4"
- Power 372.8 W (0.5 HP)
- Air Consumption 141 L/Min.
- Air Pressure 6.2 bar (90 PSI)
- Air Inlet 1/4"
- Hose Size 9.5 mm (3/8")
- Exhaust 360° Adjustable Front Side Exhaust
- Sound Pressure 83.5 dBA
- Vibration < 2.5 m/s²
- Overall Length 446 mm
- Net Weight 1.5 KG
